DB01 TUBULAR HEATER BENDING MACHINE

Product Description

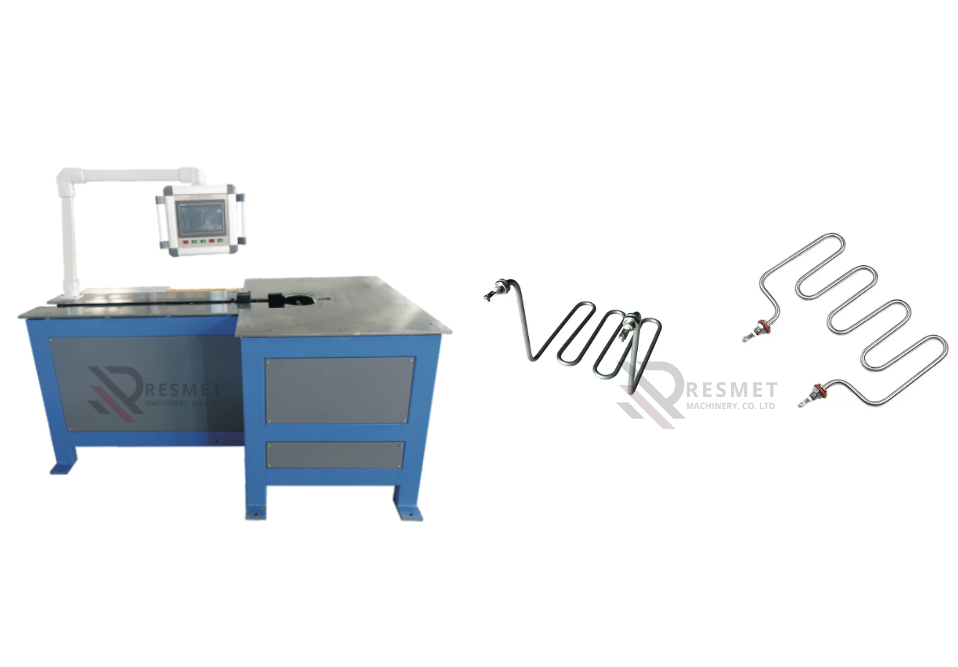

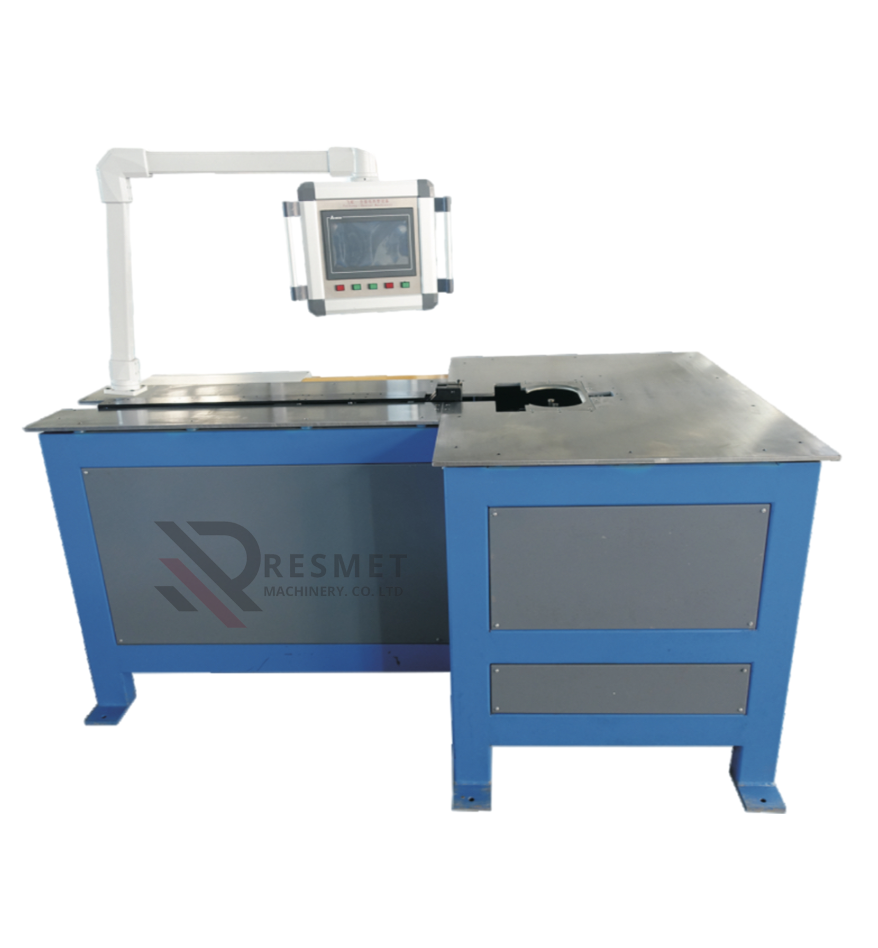

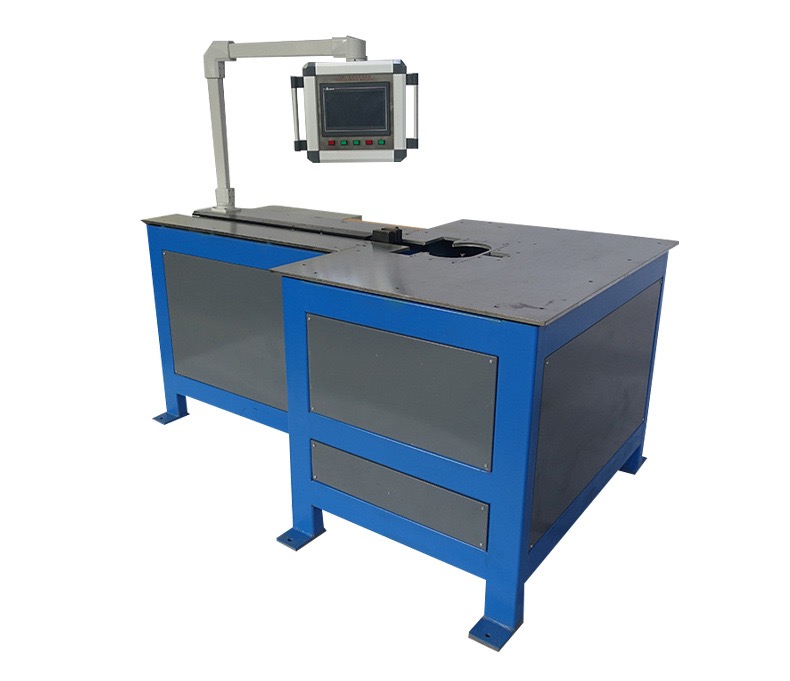

The DB01 Tubular Heater Bending Machine is a high-precision automatic CNC tube bending system designed for manufacturing tubular electric heating elements, industrial heaters, and small-diameter metal tubes. Equipped with an advanced PLC control system, servo motor (stepper motor), and touchscreen interface, the DB01 provides stable, accurate and fully automated operation, making it ideal for modern production lines.

The DB01 can bend tubular heaters into any shape or design, thanks to its quick-change interchangeable molds, which allow fast adjustments for different tube diameters. The machine can store more than 20 bending programs, enabling continuous production and reducing setup time. This makes the DB01 an excellent choice for manufacturers of tubular heating elements, electric heaters, and industrial heating components.

The DB01 CNC Bending Machine is the ideal solution for manufacturers seeking precision, productivity, and versatility in the bending of tubular electric heating elements.

Competitive Advantages

1. High-level CNC automation ensuring precision and efficiency

2. PLC touchscreen interface for intuitive operation and data storage

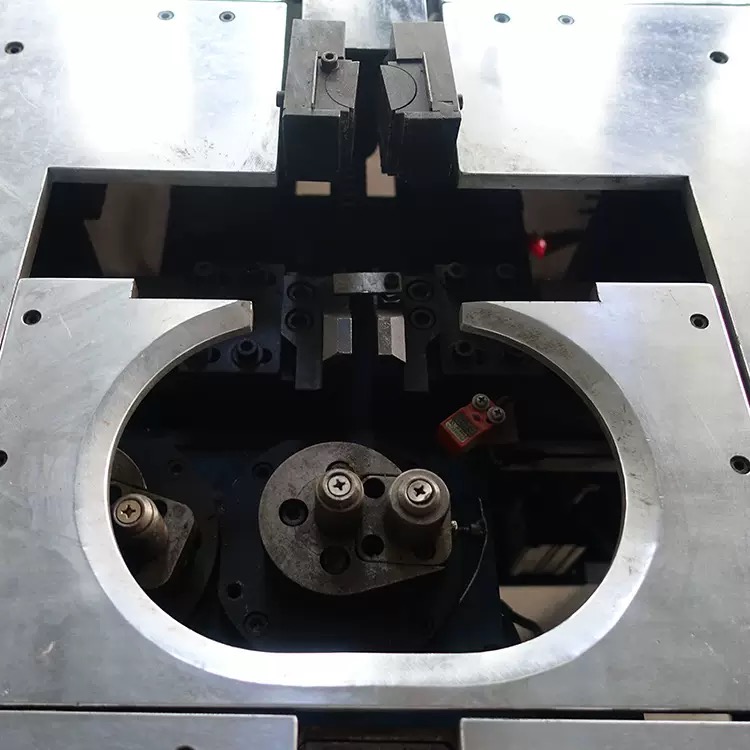

3. Fast-change mold system, compatible with multiple tube diameters

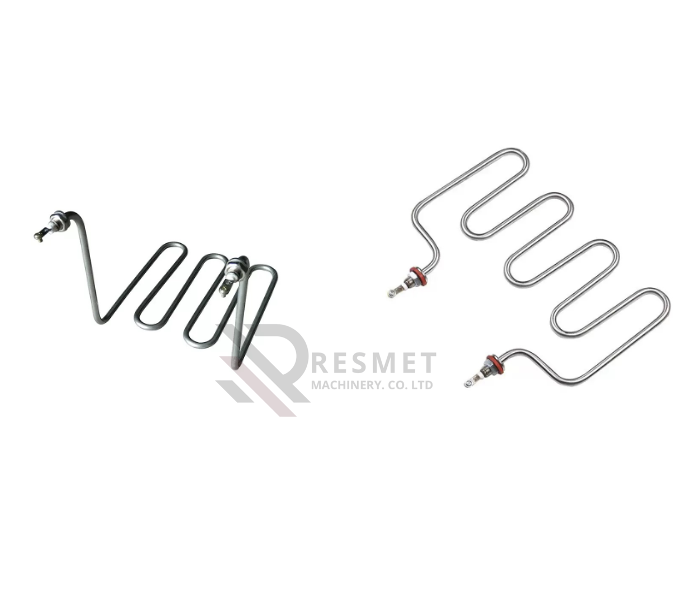

4. Capable of forming heaters into U-shapes, W-shapes, serpentine, spiral, zigzag, and custom designs

5. Ideal for mass production of industrial heating elements

Applications

Recommended for manufacturers of:

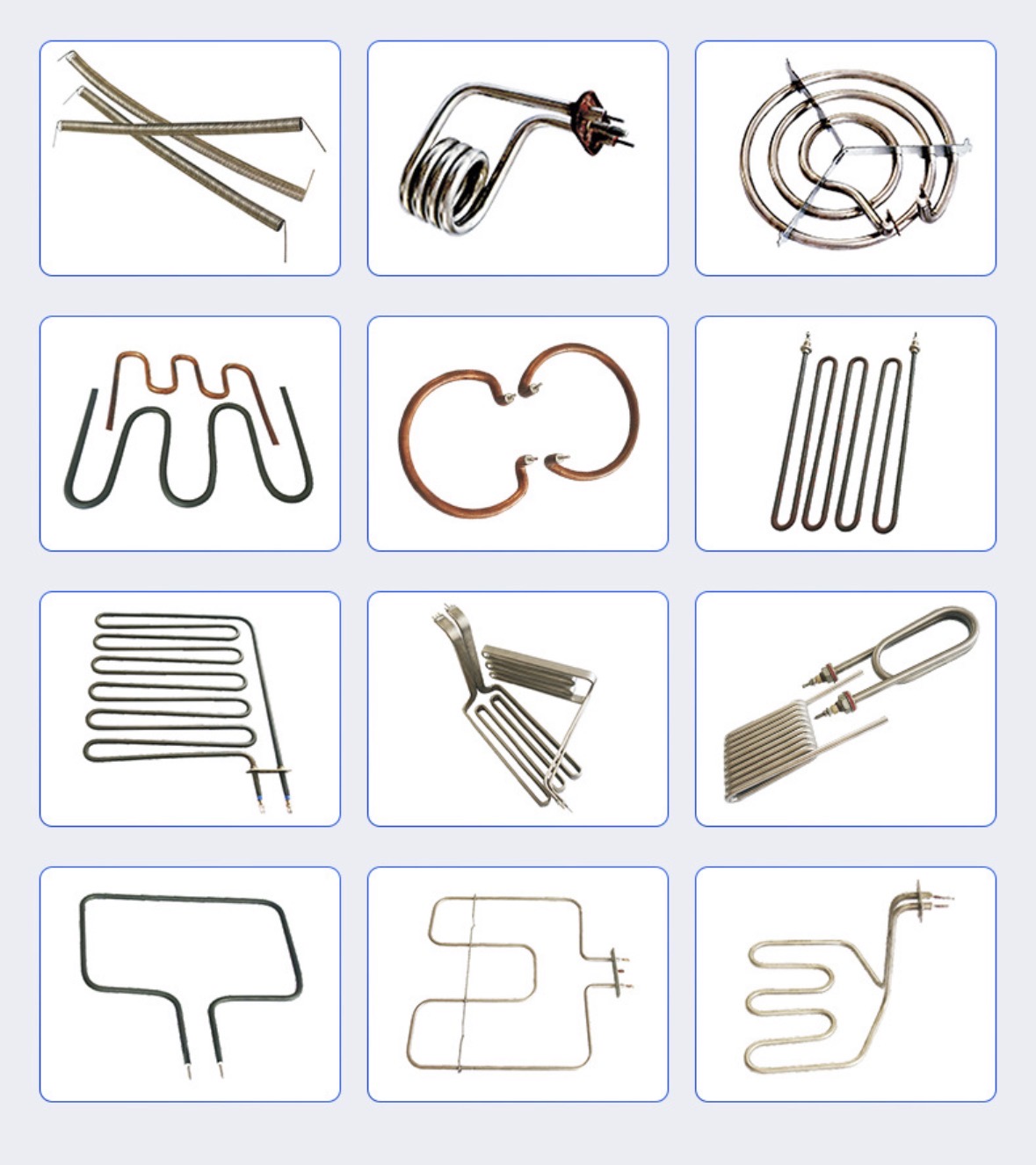

 • Tubular electric heating elements

 • Industrial, armored, and cartridge heaters

 • Heating elements for ovens, boilers, water heaters, washing machines, and home appliances

 • Tubular components for molds, injection machines, and industrial equipment

 • Precision-bent metal tubes

Technical Specifications

1. Bending heads: 3

2. Interface: PLC touchscreen

3. Tube diameter compatibility: 5 – 10 mm

4. Number of bends: 1 – 3

5. Program storage: Over 20 patterns and settings

6. Voltage: Three-phase 380V / Three-phase 220V / Single-phase 220V

7. Power: 4 kW

8. Dimensions: 2100 × 1200 × 1000 mm

9. Weight: 500 kg
