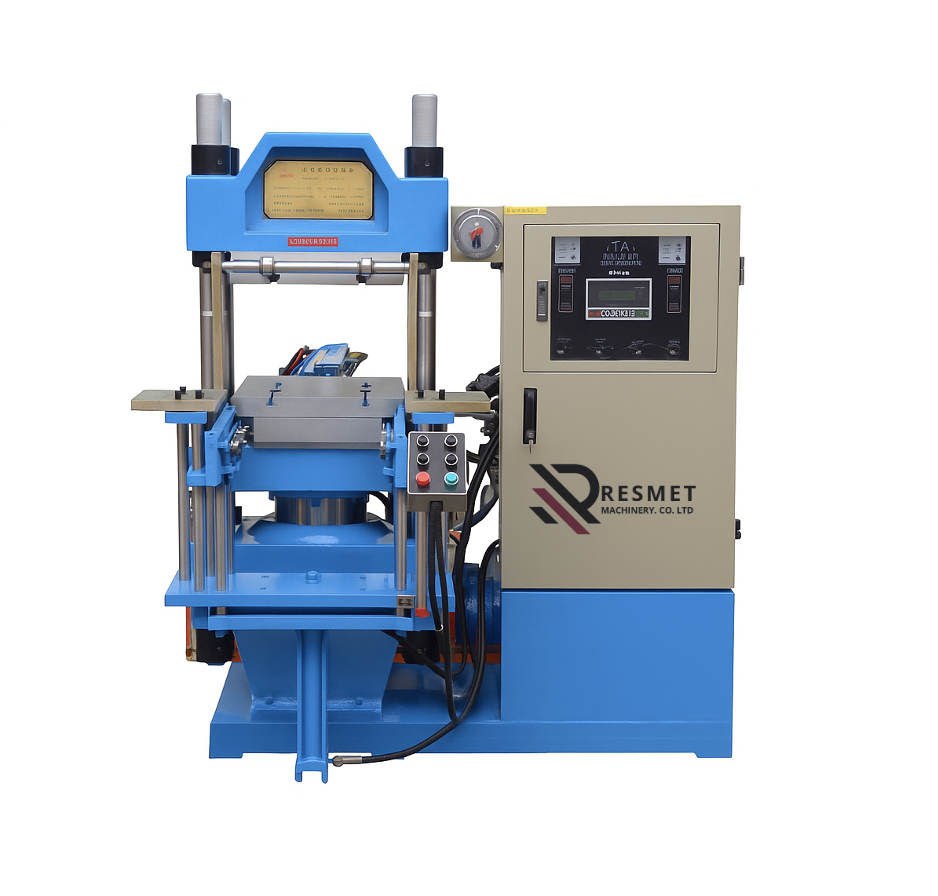

VULCANIZING MACHINE FOR ELECTRIC RESISTORS

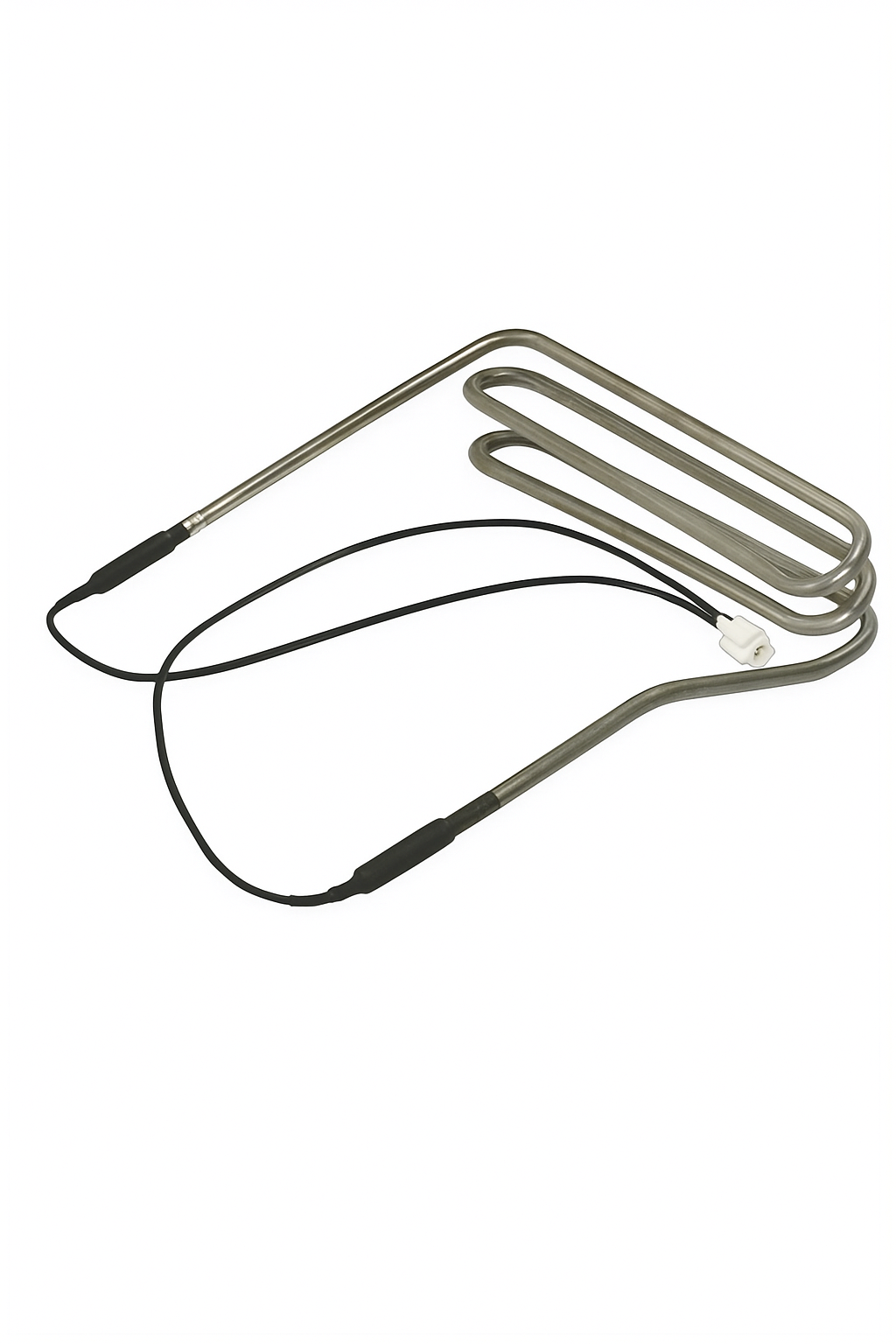

The vulcanizing machine for electric resistors is a high-precision industrial equipment specially designed for the molding, sealing and vulcanization of rubber, silicone and plastic materials products used in the manufacture of heating tubes, electrical resistors and thermal insulating components. This vulcanizing machine features the function of automatic feeding and discharging.

This kind of flat vulcanizing machine offers a robust structure and an advanced automatic control system that ensures a stable, efficient, and safe vulcanizing process. Thanks to its automatic temperature control, synchronised clamping and automatic pressure system, it allows to obtain final products with excellent adhesion, thermal resistance and structural uniformity.

Main Technical Features

Multiple heating system: Available in three versions depending on the heat source: Electric heating (economical and quick response); Steam heating (ideal for large productions); Thermal oil heating (stable and uniform temperature).

Automatic temperature control: Precise regulation through digital sensors, ensuring homogeneous vulcanization without overheating.

Adjustable Automatic Pressure: Hydraulic or pneumatic system with automatic pressure supplement to maintain constant force throughout the cycle.

Programmable timer function: Allows you to set automatic vulcanization cycles, with automatic process end alarm and stop.

Flexible position adjustment: The working position is manually regulated by the screw nut mechanism, adapting to different lengths of heating tubes or resistances.

Technical Parameters

1. Model: RM100T

2. Clamping force: 1000 (KN)

3. Maximum Working Pressure: 21 (Mpa)

4. Clamping stroke: 300 (mm)

5. Work surface size: 440×480 (mm)

6. Upper and lower mold opening size: 0-500 (mm) Can adjust the upper and lower space

7. Motor efficiency: 4 (KW)

8. Upper and lower mold temperature: 0-300 ^°C

9. Heating Power: 9.6 (KW)

10. Control: PLC Computer Controller

11. Equipment dimensions: 1960*1500*1850 (mm)
