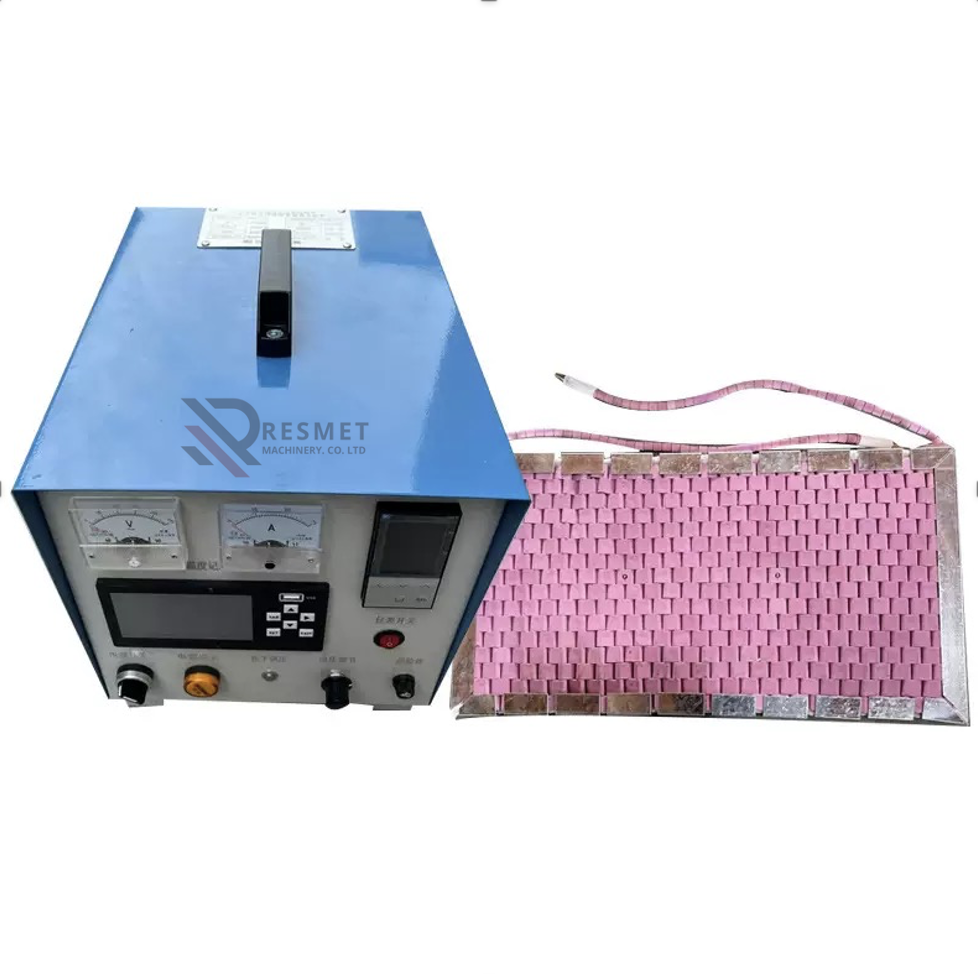

The RM-II-10KW Intelligent Temperature Controller is an advanced thermal control system designed for industrial heating, heat treatment, weld preheating, and automatic regulation of electric heating elements.
This model integrates a Japanese FUJI PXR intelligent controller, renowned for its high precision, reliability, and stability, capable of managing up to 4 heating ramps and 4 soaking stages. This allows the user to program accurate thermal curves for a wide variety of industrial applications.
The RM-II-10KW uses a bidirectional thyristor (SCR) or solid-state relay (SSR) for power output, ensuring smooth voltage control, fast response, and proportional power regulation to connected heaters.
With its compact design, robust metal enclosure, and user-friendly interface, this controller is ideal for use with flexible ceramic heaters, industrial ovens, heating tanks, process pipes, and heat treatment systems.
Parameter | Value / Description |
Model | RM-II-10KW |
Control Type | Intelligent FUJI PXR controller (4 ramps/ 4 soak stages) |
Input Voltage | Single-phase 220V AC |
Maximum Output Power | 10 kW |
Output Voltage | 0–220V (adjustable via potentiometer) |
Output Method | Bidirectional SCR or Solid-State Relay (SSR) |
Control Points | 1 |
Recording Points | 1 |
Thermocouple Type | K-type (red= positive, black= negative) |
Recommended Power Cable | 2 × 10 mm² |
Indicators | Voltmeter, ammeter, and LED power indicators |
Voltage Adjustment Range | 0–220V |
Operating Temperature | -10 °C to +50 °C |
Instalation Tyoe | Fixed mounting, metal cabinet with ventilation |
1. Intelligent control system with up to 8-stage ramp/soak temperature programming.
2. High precision and stability with FUJI PXR Japanese controller.
3. Electrical protection against overload, short circuit, and overheating.
4. Real-time voltage and current display via built-in meters.
5. Supports both manual voltage adjustment and automatic programmed control.
6. Easy integration with flexible ceramic heaters, furnaces, and industrial heating systems.
7. Compact, reliable, and low-maintenance design.
1. Connect the power input using a 2 × 10 mm² cable.
2. Connect the output socket (0–220V) to the heating element or ceramic heater.
3. Attach the K-type thermocouple (red = positive, black = negative).
4. Turn on the main power switch – the indicator light confirms power input.
5. Adjust the potentiometer to control the output voltage (0–220V).
Never exceed the heater’s rated voltage to avoid damage.
6. The voltmeter and ammeter will display live output status.
7. For detailed PXR controller programming, refer to the FUJI PXR user manual.
1. Heat treatment and post-weld stress relief processes.
2. Temperature control for flexible ceramic heaters.
3. Industrial furnaces, heating tanks, molds, and ovens.
4. Chemical and petrochemical process heating.
5. Preheating of pipes, flanges, and pressure vessels.
