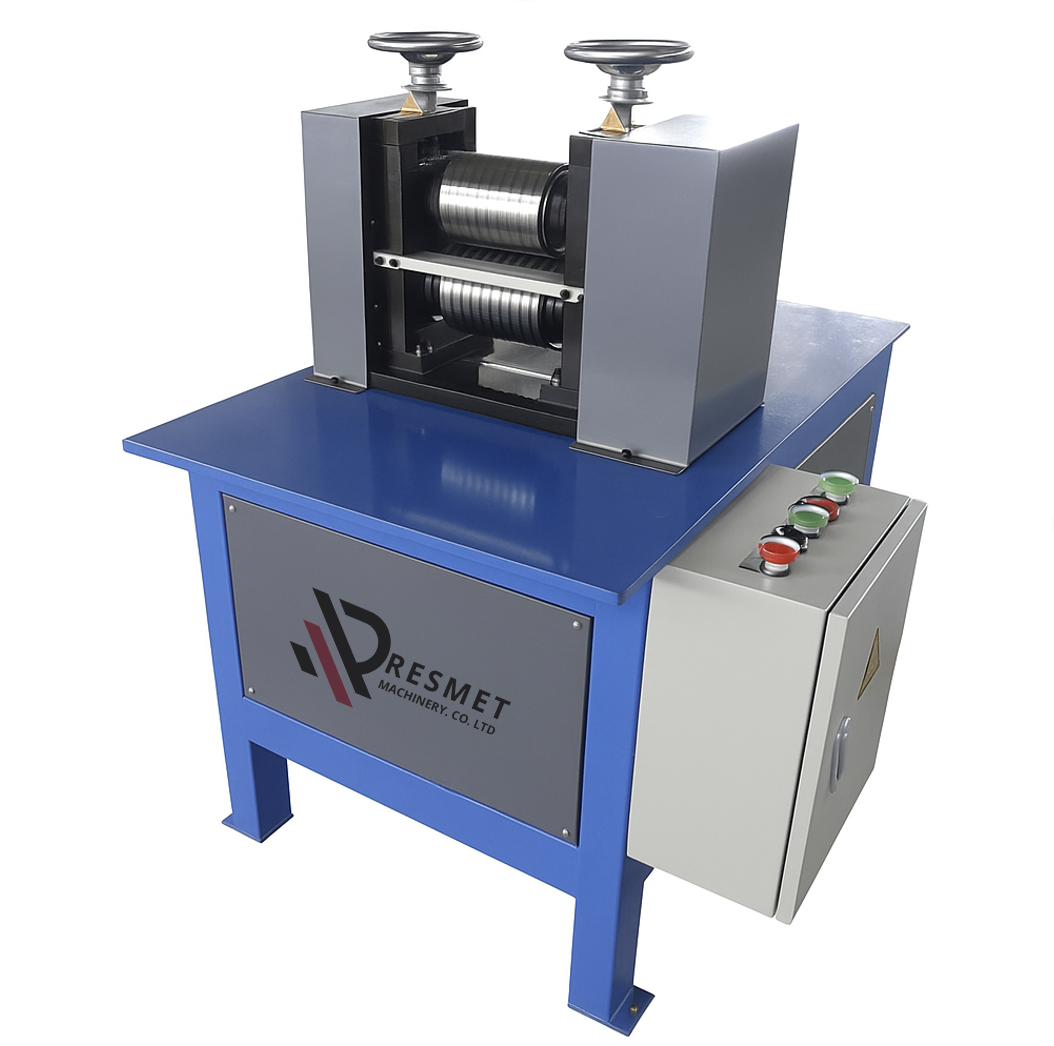

RME1 ROLLING MACHINE – ECONOMIC VERSION

RM1E tube reducing and rolling machine (also known as pipe rolling machine or diameter reduction machine) is a high-efficiency equipment specially designed for the processing of metal tubes used in electric resistors, heating systems, and industrial components.

This economical model combines simplicity, reliability and precision in a single piece of equipment, ideal for small and medium productions that require multiple tube specifications with a uniform and professional finish.

The RM1E machine uses a system of adjustable compression rollers to perform the reduction of tubes from a larger diameter to a smaller one, ensuring precise and stable forming without deformation. Its robust structure and compact design allow for easy rolling, tapering, and forming of round, square, flat, or oval tubes.

Technical Specifications:

1. Diameter reduction range: 2 – 15mm

2. Applicable length of tube: 150 – 6000 mm

3. Motor power: 3 KW

4. Dimensions: 1200 × 1000 × 1200 mm

5. Weight: 500 kg
