Coiling machine for cartridge heater

Coiling machine RM323-1

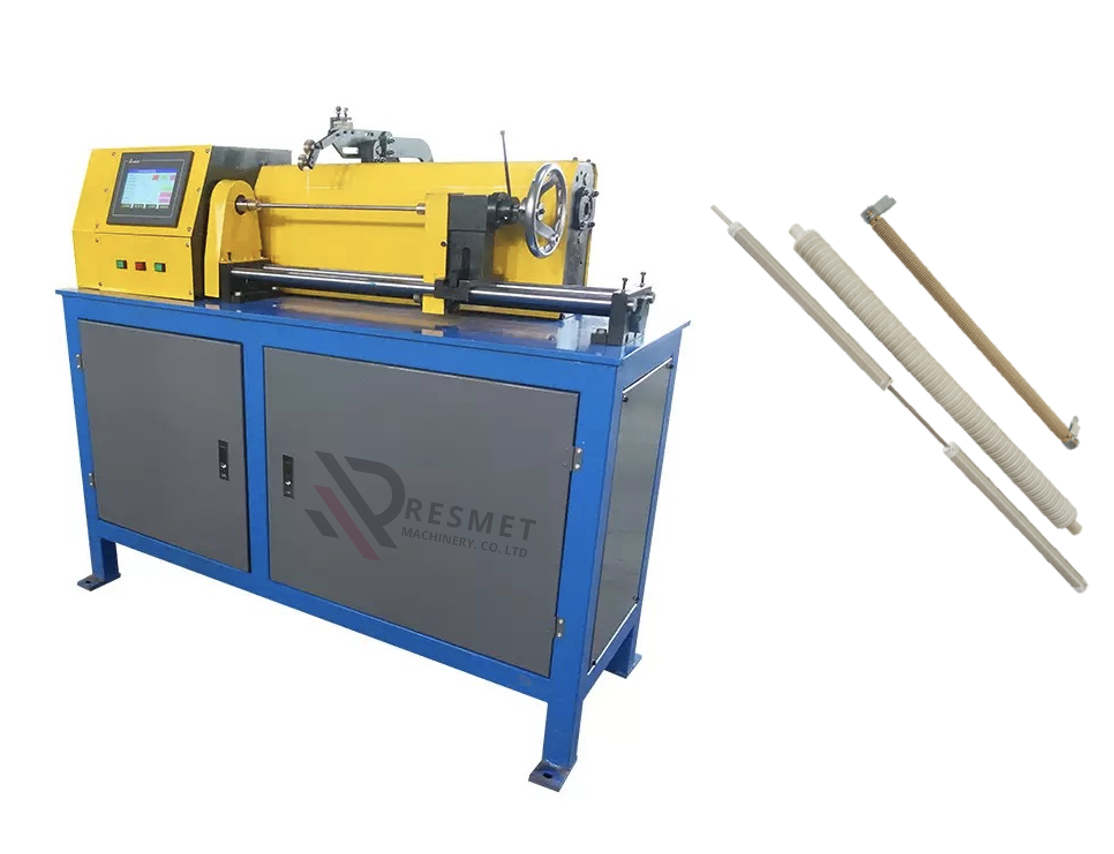

Wire coiling machine for cartridge heater  RM323-1

RM323-1 Magnesia rod Wire coiling Machine is designed according to the principle of our mica sheet coiling machine, it is specially designed and manufactured to wind magnesium tubes for cartridge heaters, it can also wind elements of heating elements with different pitch arrangements, and is controlled by servo motor + PLC,  which makes it a multi-purpose machine.

Technical parameters of magnesium rod wire winding machine

1. Coiling wire diameter (mm): 0.08-1.0

2. Coiling length (mm): 100-2000

3. Control Mode: Servo Motor + PLG + Touch Screen

4. Adjustable speed

5. Production shifts (sets): 600-1000

6. Voltage: 380V/320V/220V/220V Single-Phase

7. Power: 500W

8. Machine Volume (mm): Length x Width x Height 2500 x 700 x 1300

9. Machine weight: 300kg
