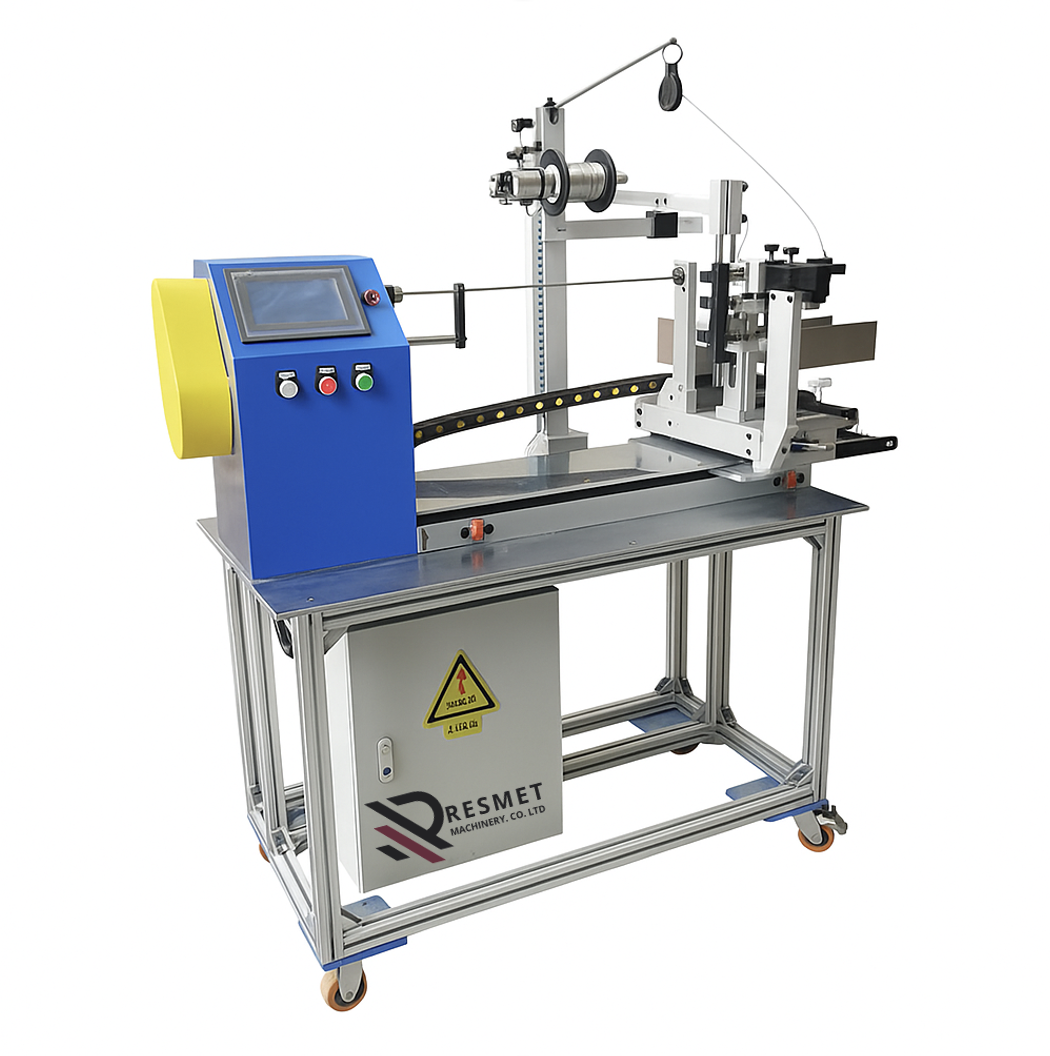

RM321 DUAL-END TAIL COIL WINDING MACHINE | HIGH-PRECISION WIRE WINDER

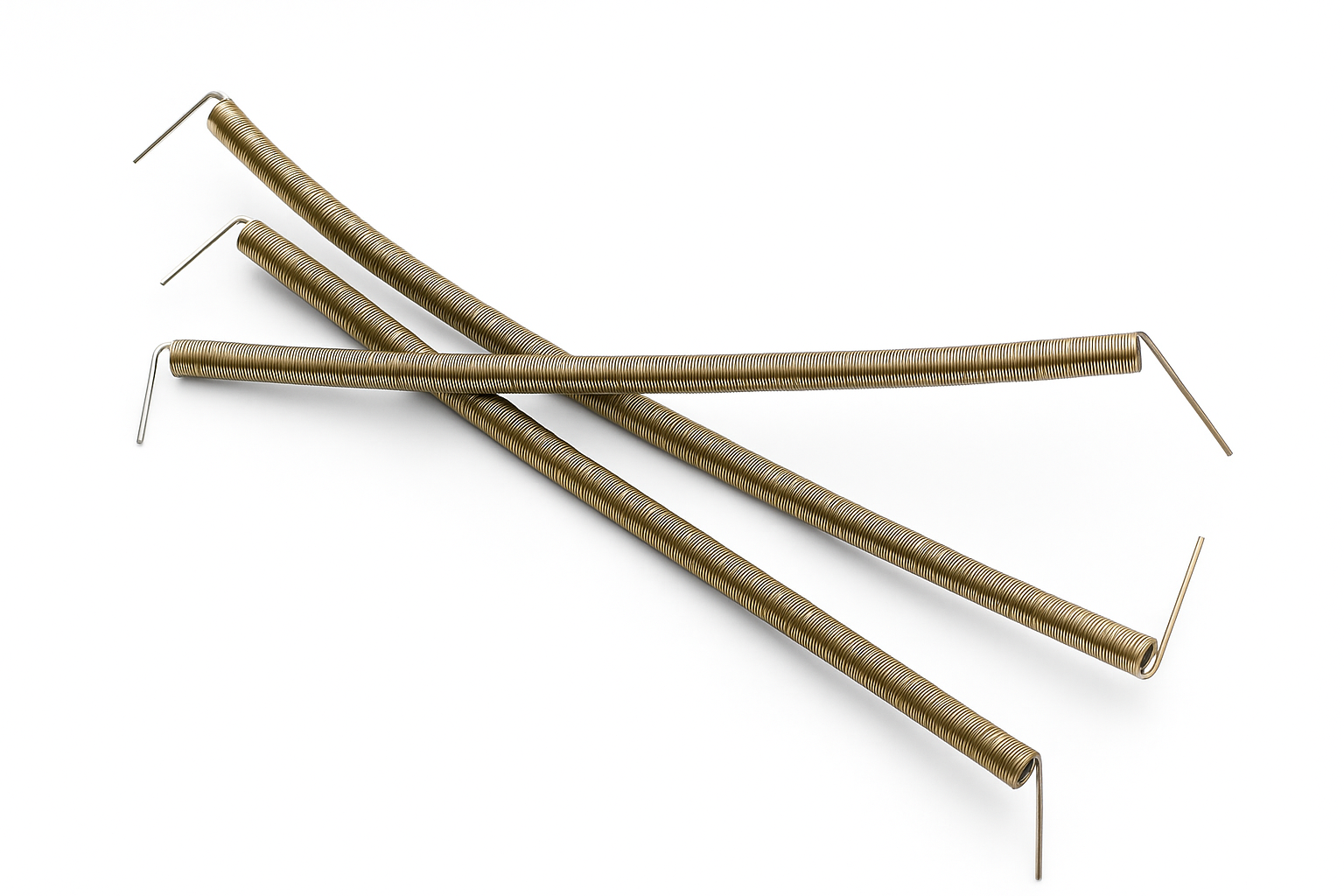

The RM321 double-tailed wire winding machine is specially designed for wire winding of electric resistors, heating elements and double-ended coils with tail, offering an automated, accurate and high-performance solution for modern production lines.

This wire winding machine incorporates PLC control, touch screen and high-precision servo motor, ensuring stable, safe and fully automated operation.

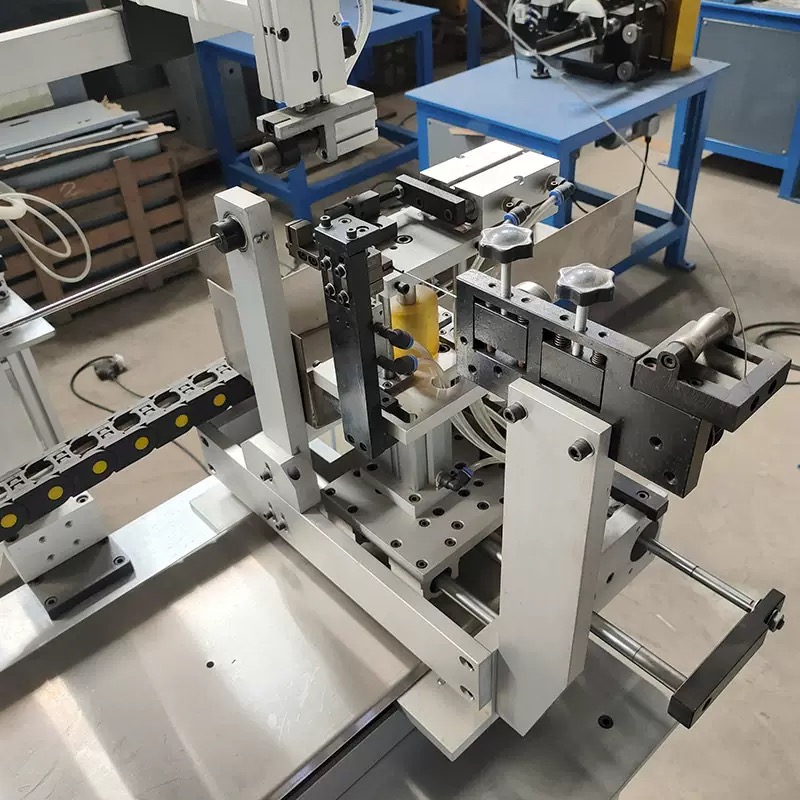

The RM321 continuously performs the operations of automatic wire feeding, starting, distribution, stopping, cutting and automatic picking, significantly reducing manual intervention and improving production efficiency.

Its compact structure, intelligent design, and user-friendly interface make this automatic double-glue winding machine an ideal tool for manufacturers of electric resistors, heating coils, sensors, inductors, and precision electronics.

Technical Specifications

1. Model No.: RM321

2. Coil Length (mm): 30 – 1200

3. Wire diameter (mm): 0.1 – 0.8

4. Winding shaft diameter (mm): 0.5 – 10

5. Maximum outside diameter of coil (mm): 12

6. Voltage: Three Phase 380V/220V or Single Phase 220V

7. Total Power: 1.3 KW

8. Speed: Adjustable by servo control

9. Production per shift: 2000 – 5000 units

10. Dimensions (mm): 1300 × 800 × 1300

11. Weight: 200KG
