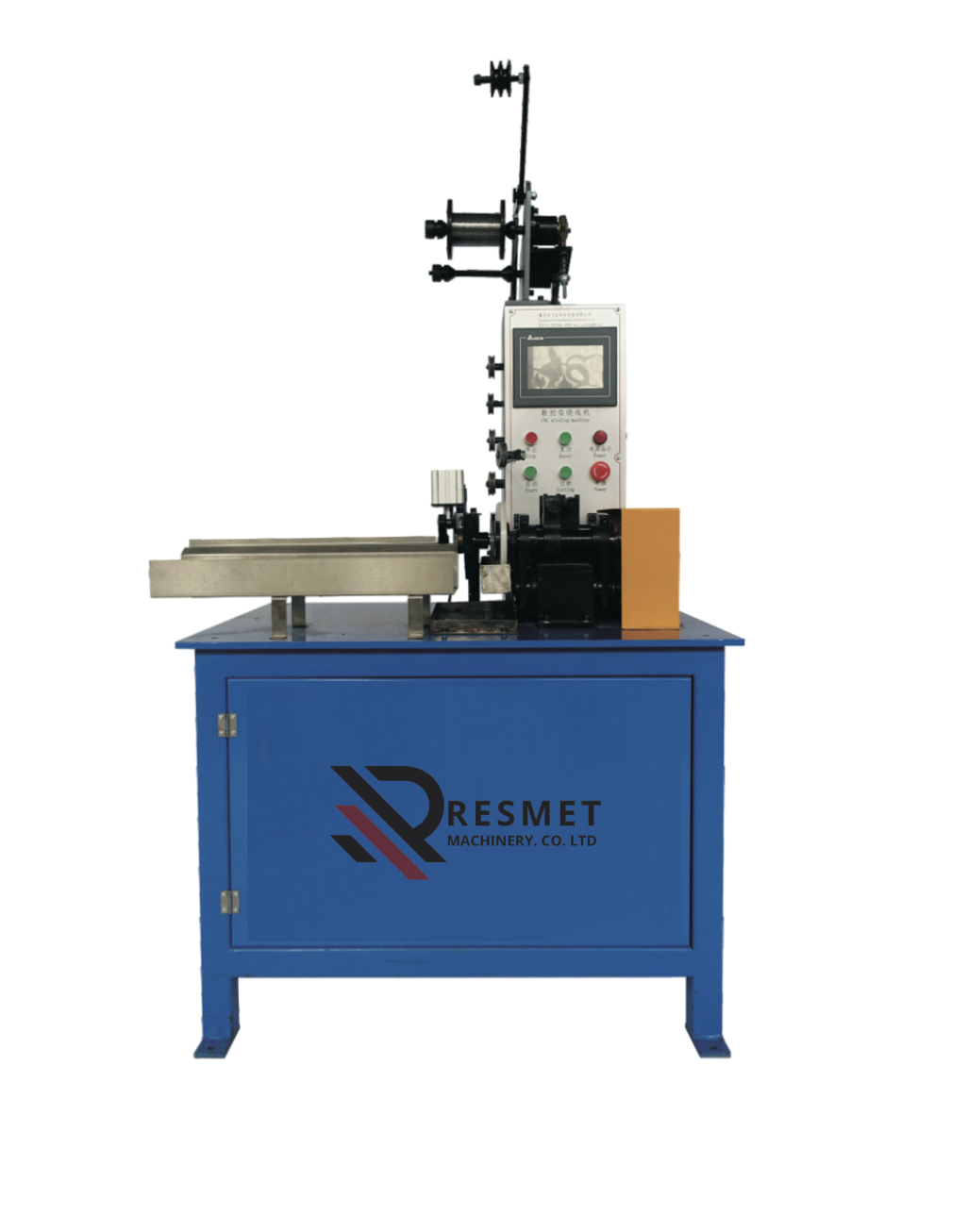

Winding machine RM328

RM328 Wire Coiling | Winding Machine

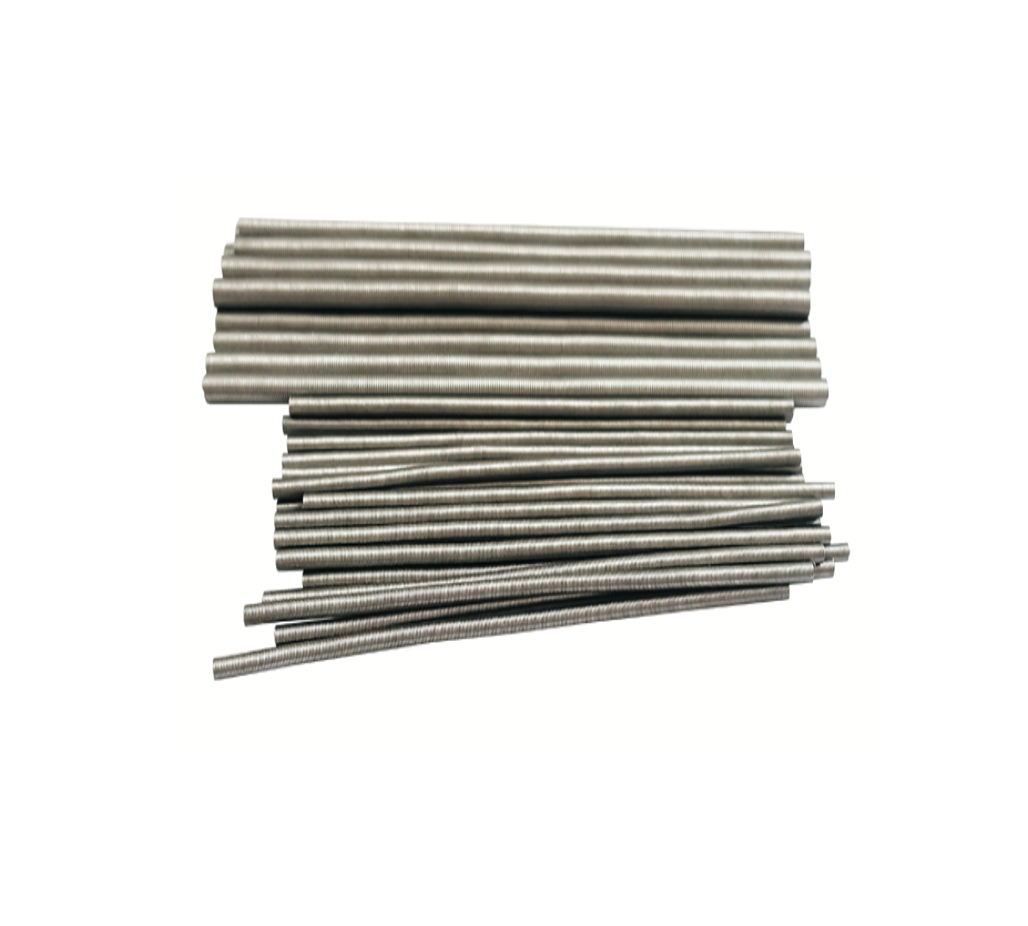

The heaters wire winding machine is a solution to the primitive problems of manual winding, since, due to its speed and high efficiency, it can wind wires in a fast way, with uniform pitch and with the ability to store data. All of the above results in increased business productivity, higher quality resistances and cost savings.  RM328 coiling machine has many main models, including single-wire, two-wire, and three-wire winders, single-roller and two-roller structures; there are ordinary counter control and PLC control, and this model can be combined with other models.

Technical Parameters of Wire Winding Machine

1. Model: single wire, double wire, triple wire, single pressure wheel, double pressure wheel, PLC adaptable at will.

2. Winding wire diameter (mm): 0.13-2.0

3. Winding length (mm): unlimited

4. Winding Mandrel (mm): 1-20

5. Maximum coil outer diameter (mm): 25

6. Voltage: Single phase 220V

Power: 400 W

7. Speed: adjustable to two speeds

8. Traveling capacity (pieces): 2000-5000

9. Volume (mm): 1800 x 900 x 700

10. Weight: 200kg
