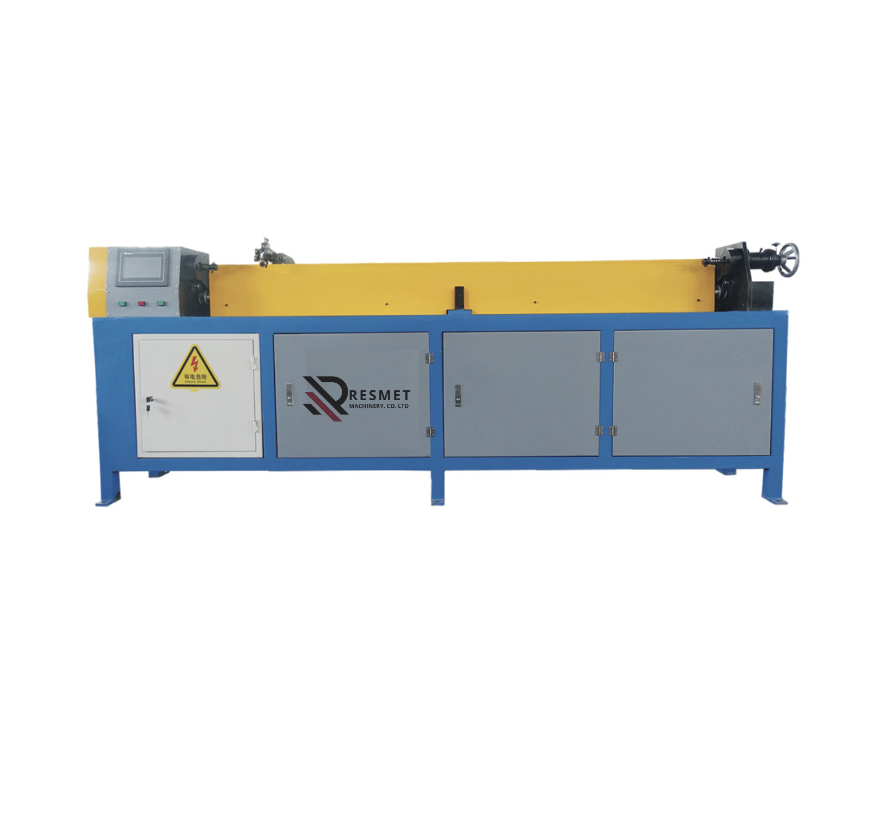

Hot Runner Heater Coiling Machine RM324

Hot Runner Heater Coiling Machine RM324

The RM324 hot runner heater winding machine is specially designed for the winding of heating wire components for hot runner heater or mini tubular heaters and hot runner or hot runner heater. The inner diameter after spiral winding is usually only 0.5 mm or less, making it difficult to use in other winding equipment. Our machine can meet the coiling needs of different spiral coils and can be equipped with single and double wire winding functions. Currently, this hot runner heater winding machine allows you to wind smaller wire diameters than our competitors.

Technical Parameters of RM324 Machine

1. Coiling wire diameter (mm): 0.08-1.0

2. Winding length (mm): 100-2000

3. Control Mode: Servo Motor + PLG + Touch Screen

4. Adjustable speed

5. Production shifts (sets): 600-1000

6. One machine can wind mica sheets, carbon fiber, magnesium rods, ceramic rods, and other electric heating elements.

7. Voltage: three-phase 380 V / three-phase 220 V / single-phase 220 V

8. Power: 500W

9. Machine Volume (mm): L x W x H 2500 x 700 x 1300

10. Machine weight: 300kg
