Plastic and twist tie cutting machine

                                                                         RM100G Cutting Machine                                                                                Cutting Materials

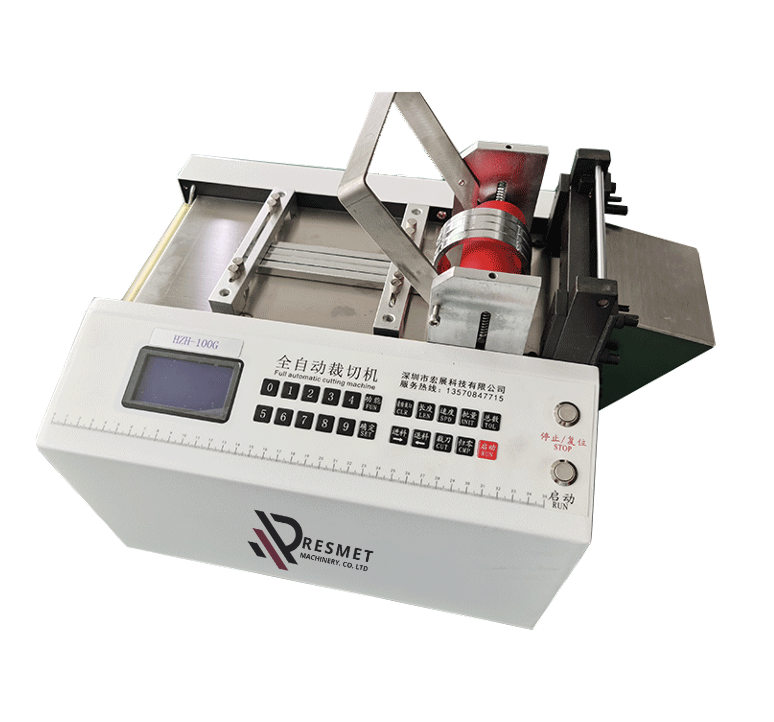

Automatic plastic and twist tie cutting machine RM100G

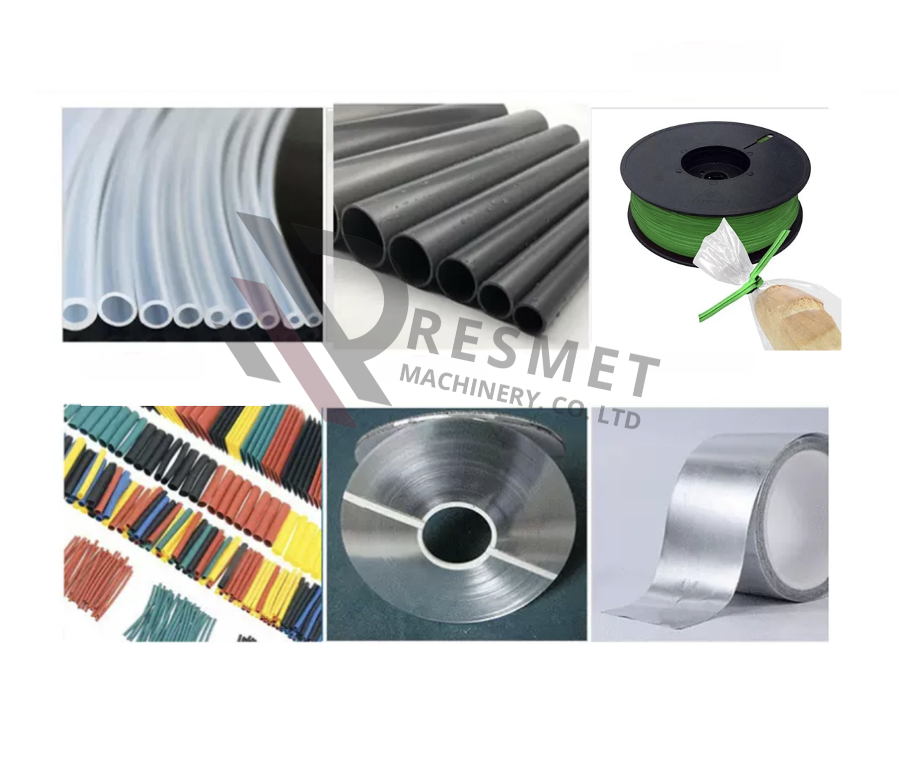

This computer cutter is suitable for heat shrink sleeves, twist tie, PVC sleeves, yellow wax pipes, fiberglass pipes, PE pipes, silicone pipe segments, PVC sleeves with electrolytic capacitor, PVC plastic tape, wire arrangement, plastic hose, nylon pipe, Teflon tube, insulating paper, copper foil,  copper tape, nickel tape, non-woven fabric, acetate fabric, conductive fabric, cotton thread tape, elastic band, Velcro, zipper and other soft tapes or sheets (tubes) and other fixed-length cuts.

Technical Parameters:

1.Power supply: 220V 50/60HZ

2.Blade Material: SKD11 or Utility Blade

3.Power: 900w

4.Feeding speed: 400 blades/min

5.Cutting length: 1mm—100m

6.Cutting width: 0.1mm—100mm

7.Motor: 862F128S closed circuit

8.Accuracy: 0.1mm

9.Weight: 40KG

10.Dimensions: L900 (excluding 470 frame)*W320*H380

Machine Features:

* High-speed automatic feeding, controlled by microcomputer program with an accuracy of 0.1mm;

* When the operation is automatic and manual, it can be fed forward or backward, and can be cut manually;

* It has the function of forward and reverse, automatic counting, number stop and memory saving when the power is off

* Computerized pipe cutting machine cutting speed adjustable, full LCD display;

* The cutting length and speed of the computerized pipe cutting machine can be adjusted arbitrarily and continuously;

* Computerized plastinudo cutting machine  , automatic accumulation of groups and total cumulative count;

* Batch pause and delay time can be set;

* It can automatically cut all kinds of sheets and tubular materials; There is an additional feed pulley behind the machine, which can automatically adapt to the tray placement and the feeding of the strip coils.

* High-speed stepper motor precisely controls the length of the cutting material; Adjustable strap length and speed;

* Computerized pipe cutting machine cutting time protection; configuration of the total number; Handle Configuration; The pause time of the secondary handle is adjustable;

* The computerized pipe cutting machine is equipped with a variety of manual operations, which is convenient for debugging;

* Computerized tube cutting machine, LCD, large screen, intuitive Chinese screen, simple and convenient operation;

* Using special mechanical structure and special tools, with special software control, to achieve the flat incision , the length is accurate.
