Based on our interest in optimizing industrial processes with high-performance solutions, our company offers a proposal for a fully automatic production line that could redefine the efficiency in the manufacture of products with metal rods, steel parts, aluminum parts, etc. Our production line not only speeds up production, but ensures accuracy and reliability at every stage of the process.
The solution includes an integrated system of four machines:
-Unwinder
- Straightening machine with cutting function
- Feed conveyor belt
- Disc collection system that transfers the material to the main welding and part forming device.
- Part forming machine that produces the final parts to a design previously established by the user.
-Finished product collection device, which maximizes productivity.

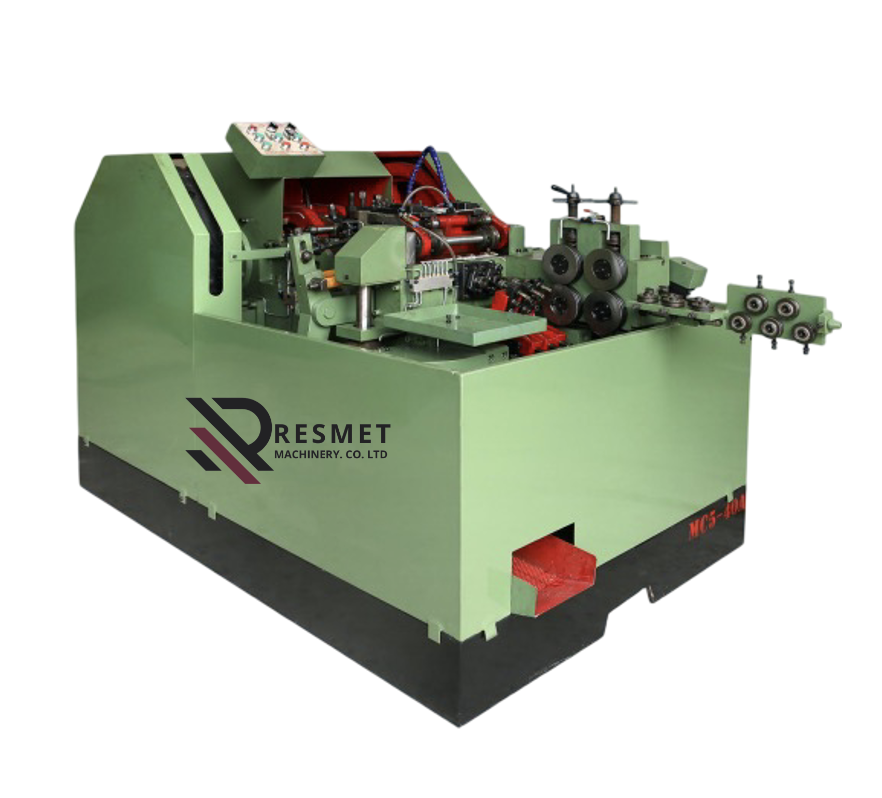

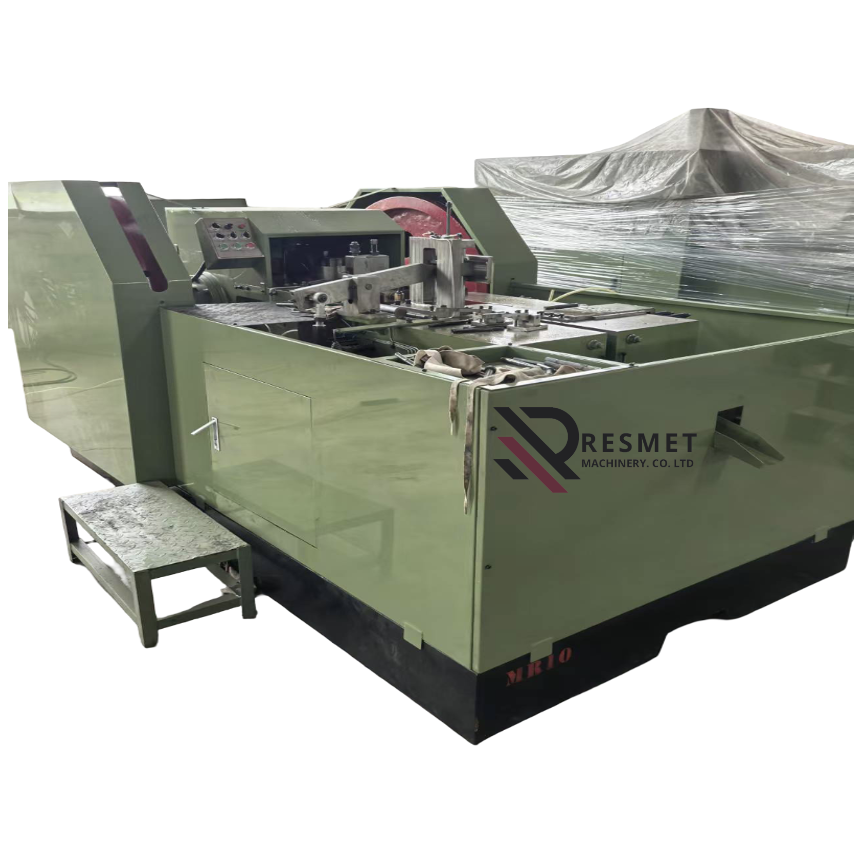

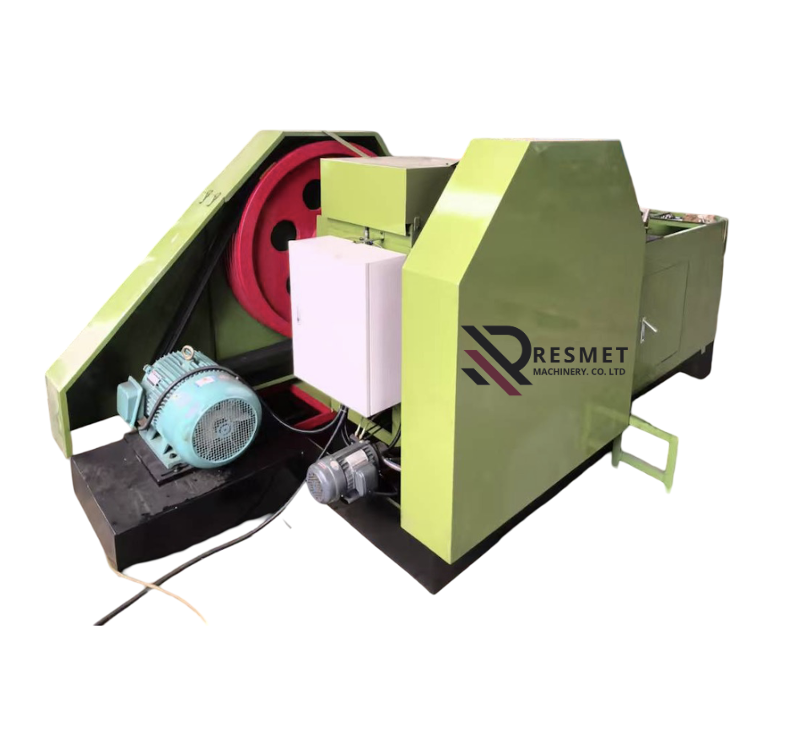

The heart of the system is the MR10-800 machine, designed for high performance:
- Maximum rod length: unlimited
- Maximum diameter: φ10mm
- Main carriage stroke: 150mm
- Main Motor: 11kW
- Oil pump: 11kW
- Capacity: 10–20 pieces/minute
- Weight: 7.5 tons
- Packaging dimensions: 4m x 1.9m x 1.9m
- Featured feature: double-click for mold splitting
