Tube straightening machine RM3G

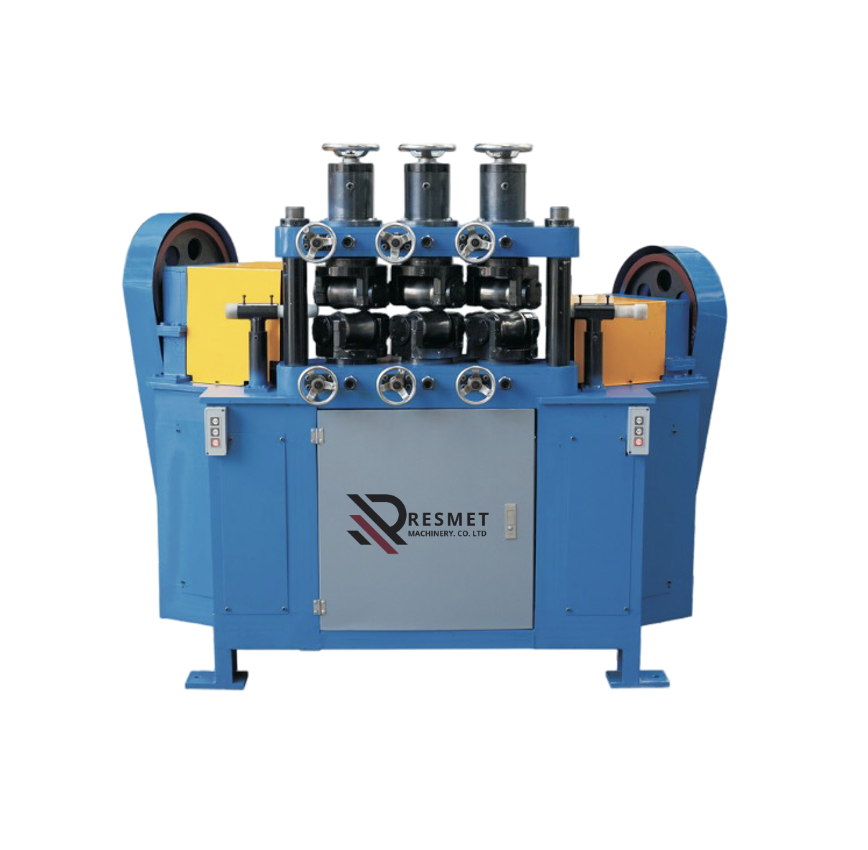

RM3G Tube Straightening Machine

The RM3G straightener is mainly used for straightening and repairing bent and deformed tubes during tube fabrication or annealing. The machine consists of 3 or 5 groups of rollers connected to transmissions, motors, etc. It can straighten tubes of different diameters. There is no need to replace the straightening wheel to straighten empty and filled tubes within a certain range. The machine is equipped with a frequency converter to control the straightening speed of tubes of different materials.

Technical Parameters of Pipe Straightening Machine

1. Applicable tube diameter (mm): 5-20

2. Applicable Tube Length (mm): 350-6000

3. Speed: Inverter (speed regulation/constant speed)

4. Voltage: Three-phase 480 V / Three-phase 380 V / Three-phase 220 V / Single-phase 220 V

5. Power: 1.5 (2.2) kW*2

6. Number of Straightening Groups: 3 Groups/5 Groups

7. Machine Size (mm): 1500 x 1300 x 1500

8. Machine weight: 600kg/800kg
